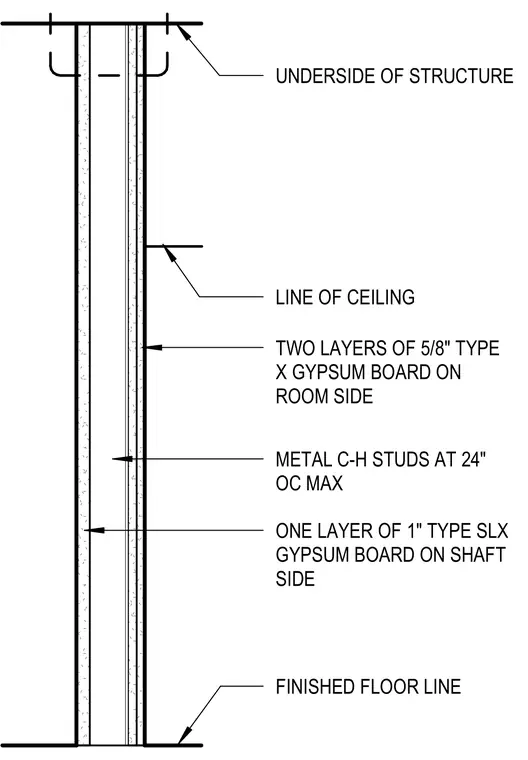

This shaft wall assembly utilizes metal C-H studs spaced at a maximum of 24 inches on center. The shaft side is finished with one layer of 1-inch Type SLX gypsum board. The room side is finished with two layers of 5/8-inch Type X gypsum board. The assembly extends from the finished floor line to the underside of the structure, with a designated line of ceiling indicated.
Text on the drawing
UNDERSIDE OF STRUCTURE LINE OF CEILING FINISHED FLOOR LINE A9.2.3 54 SIM ONE LAYER OF 1" TYPE SLX GYPSUM BOARD ON SHAFT SIDE METAL C-H STUDS AT 24" OC MAX TWO LAYERS OF 5/8" TYPE X GYPSUM BOARD ON ROOM SIDE
