Plumbing · P-FPWSS

14x28 Enclosure Mounting Detail

Materials

Concrete Metal (misc.)

Elements

Anchors / Embeds

Connections

Embed Plate

About this detail

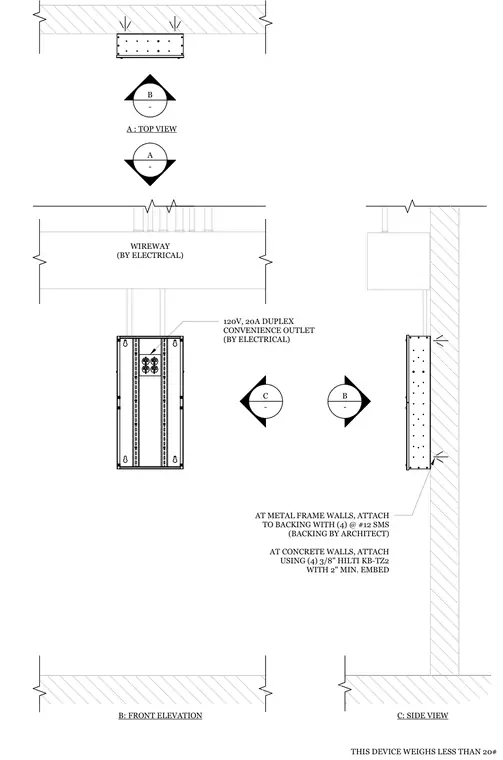

Installation of a 14x28 enclosure weighing less than twenty pounds with top, front, and side views. At metal frame walls, the enclosure attaches to backing with four number twelve sheet metal screws, with the backing provided by the architect. At concrete walls, the enclosure secures using four three-eighth-inch Hilti KB-TZ2 anchors with a two-inch minimum embedment. Power is supplied via a one hundred twenty volt, twenty amp duplex convenience outlet provided by electrical, positioned below a wireway also provided by electrical.
