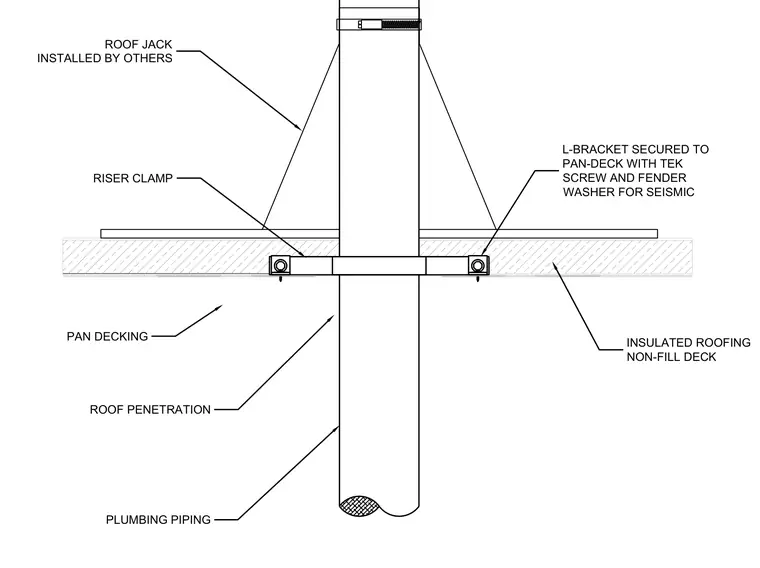

Plumbing piping passes through an insulated roofing assembly over a non-fill pan deck at a roof penetration. A seismic riser clamp secures the pipe and is anchored to the pan decking using L-brackets fastened with TEK screws and fender washers. A roof jack is installed by others around the pipe penetration.
PAN DECKING L-BRACKET SECURED TO PAN-DECK WITH TEK SCREW AND FENDER WASHER FOR SEISMIC RISER CLAMP ROOF JACK INSTALLED BY OTHERS INSULATED ROOFING NON-FILL DECK ROOF PENETRATION PLUMBING PIPING
