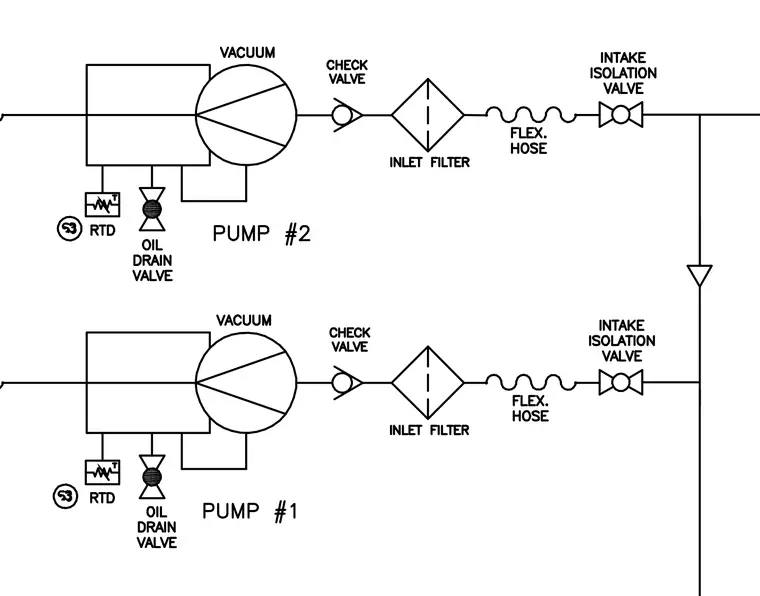

Dual vacuum pumps, labeled Pump #1 and Pump #2, connect to a common intake line through individual inline assemblies. Each pump features an RTD temperature sensor and an oil drain valve. The discharge line from each vacuum unit incorporates a check valve, an inlet filter, a flexible hose connection, and an intake isolation valve before tying into the main system.
