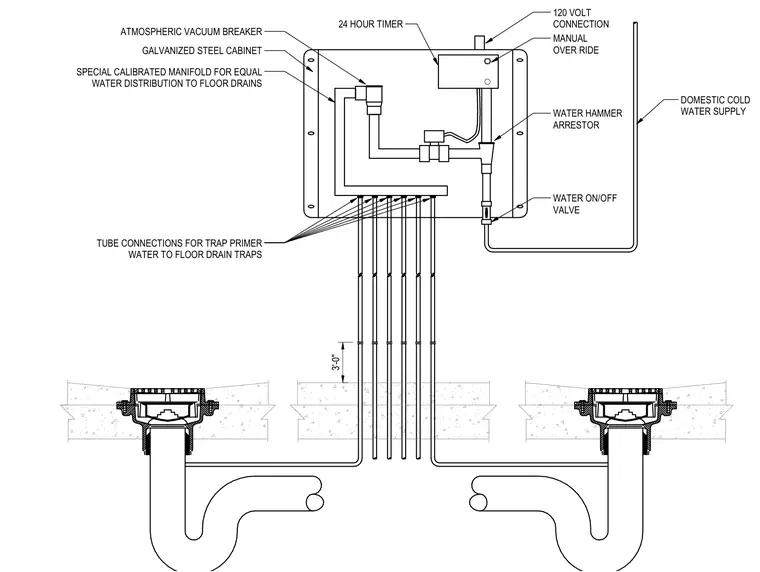

The assembly features a galvanized steel cabinet enclosing a special calibrated manifold for equal water distribution to floor drains, paired with an atmospheric vacuum breaker and a water hammer arrestor on the domestic cold water supply line. A 24-hour timer controls the water on/off valve, while a manual override and a 120-volt electrical connection are provided. Multiple tube connections run from the manifold down to individual floor drain traps to maintain water seals.
ATMOSPHERIC VACUUM BREAKER GALVANIZED STEEL CABINET SPECIAL CALIBRATED MANIFOLD FOR EQUAL WATER DISTRIBUTION TO FLOOR DRAINS WATER ON/OFF VALVE WATER HAMMER ARRESTOR MANUAL OVER RIDE 120 VOLT CONNECTION 24 HOUR TIMER TUBE CONNECTIONS FOR TRAP PRIMER WATER TO FLOOR DRAIN TRAPS DOMESTIC COLD WATER SUPPLY 3'-0"
