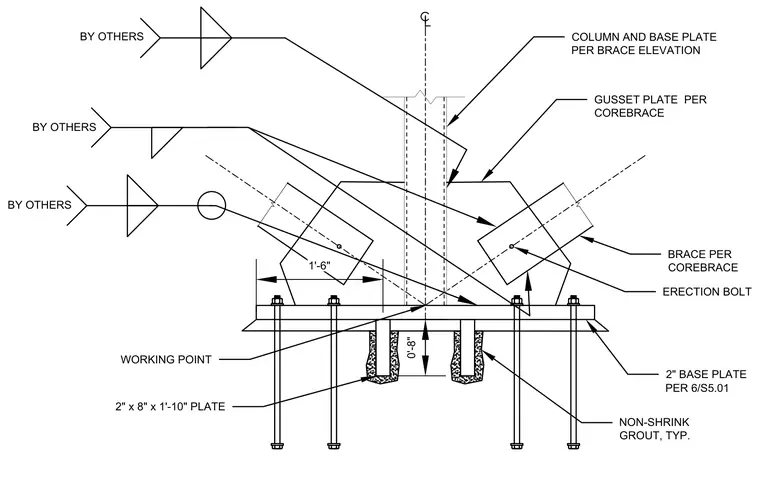

A structural steel column and base plate assembly connects to buckling-restrained braces via a gusset plate welded to the column base. The two-inch-thick base plate rests on a typical layer of non-shrink grout and is anchored with extended anchor rods supported by two-by-eight-inch plates measuring one foot ten inches long. Each brace connects to the gusset plate using an erection bolt, with additional components provided by others as indicated. A designated working point establishes the geometric intersection of the brace centerlines at the base.
COLUMN AND BASE PLATE PER BRACE ELEVATION BRACE PER COREBRACE GUSSET PLATE PER COREBRACE ERECTION BOLT BY OTHERS BY OTHERS BY OTHERS 2" BASE PLATE PER 6/S5.01 WORKING POINT 2" x 8" x 1'-10" PLATE 0'-8" NON-SHRINK GROUT, TYP. 1'-6"
