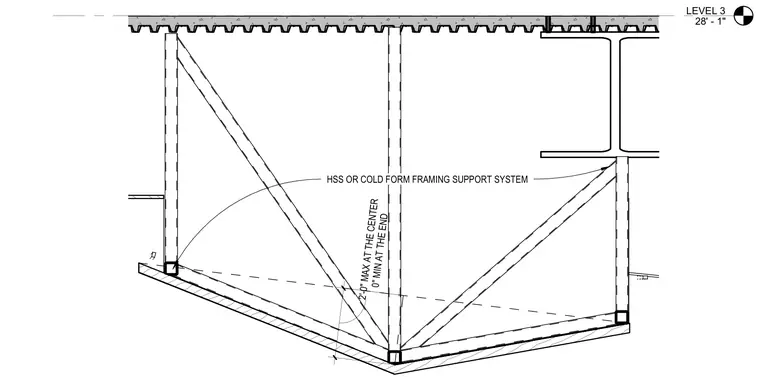

An interior ceiling framing support system hangs from an overhead concrete-filled metal deck and structural steel beam. Hollow structural section or cold-formed framing members suspend the angled ceiling planes, featuring clearances dimensioned zero inches minimum at the end and two feet zero inches maximum at the center. Diagonal and vertical members transfer loads back to the overhead floor slab and framing above.
LEVEL 3 28' - 1" HSS OR COLD FORM FRAMING SUPPORT SYSTEM 0" MIN AT THE END 2'-0" MAX AT THE CENTER
