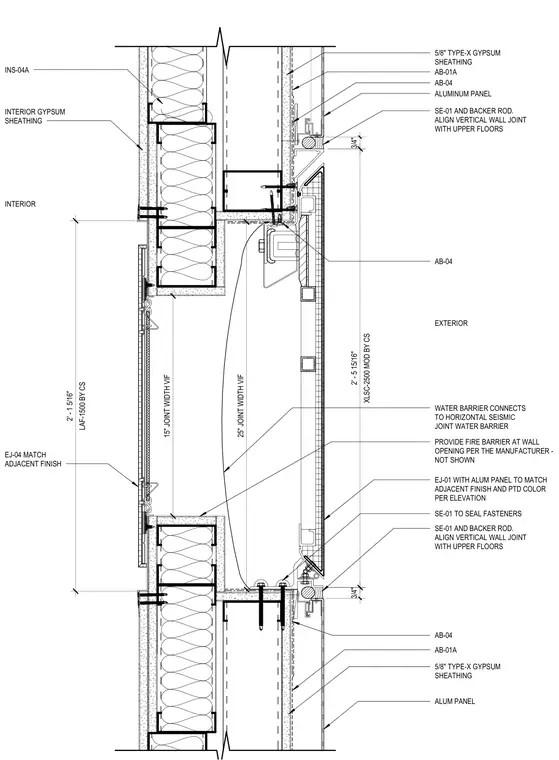

A vertical exterior wall expansion joint integrates an aluminum panel system on the exterior with 5/8-inch Type-X gypsum sheathing, air barriers AB-01A and AB-04, and a sealant joint with backer rod SE-01. The interior features framing with insulation INS-04A and gypsum sheathing, accommodating a twenty-five-inch joint width with an XLSC-2500 expansion joint cover by Construction Specialties. A water barrier connects to the horizontal seismic joint water barrier, and a fifteen-inch interior joint features an LAF-1500 expansion joint cover matching adjacent finishes. A fire barrier is provided at the wall opening per the manufacturer.
5/8" TYPE-X GYPSUM SHEATHING AB-01A AB-04 ALUM PANEL SE-01 AND BACKER ROD. ALIGN VERTICAL WALL JOINT WITH UPPER FLOORS EJ-01 WITH ALUM PANEL TO MATCH ADJACENT FINISH AND PTD COLOR PER ELEVATION AB-04 AB-01A SE-01 AND BACKER ROD. ALIGN VERTICAL WALL JOINT WITH UPPER FLOORS EXTERIOR SE-01 TO SEAL FASTENERS AB-04 ALUMINUM PANEL 5/8" TYPE-X GYPSUM SHEATHING WATER BARRIER CONNECTS TO HORIZONTAL SEISMIC JOINT WATER BARRIER INS-04A INTERIOR GYPSUM SHEATHING INTERIOR EJ-04 MATCH ADJACENT FINISH 15" JOINT WIDTH VIF XLSC-2500 MOD BY CS 2' - 5 15/16" LAF-1500 BY CS 2' - 1 5/16" 25" JOINT WIDTH VIF 3/4" 3/4" PROVIDE FIRE BARRIER AT WALL OPENING PER THE MANUFACTURER - NOT SHOWN
