An inline gas piping assembly incorporates approved unions, Underwriters Laboratories and American Gas Association approved gas shut-off valves from Milwaukee Valve Company, and an optional gas pressure regulator. The system provides flexible connections and isolation points to accommodate movement at structural seismic joints.

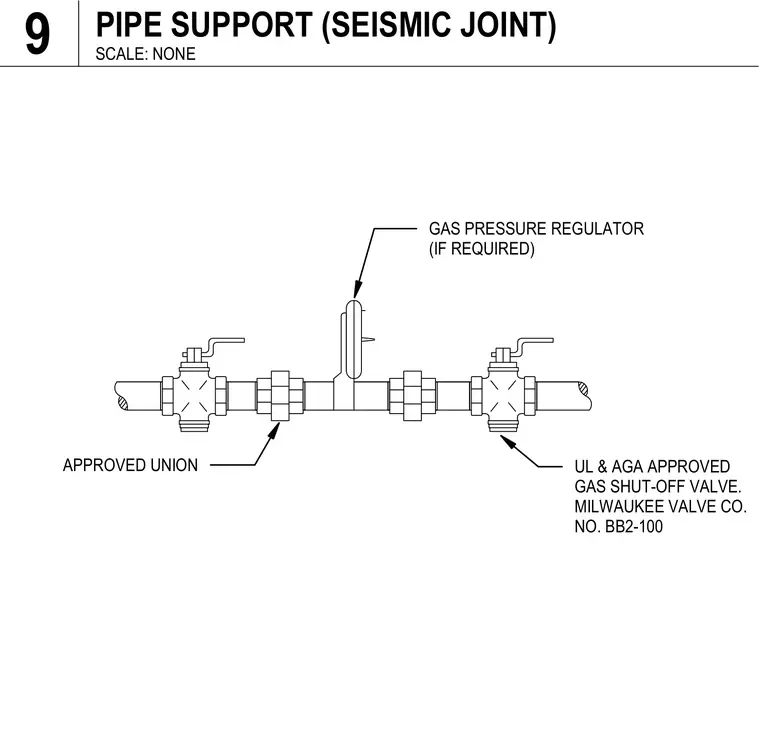

GAS PRESSURE REGULATOR (IF REQUIRED) UL & AGA APPROVED GAS SHUT-OFF VALVE. MILWAUKEE VALVE CO. NO. BB2-100 APPROVED UNION SCALE: NONE PIPE SUPPORT (SEISMIC JOINT) 9
