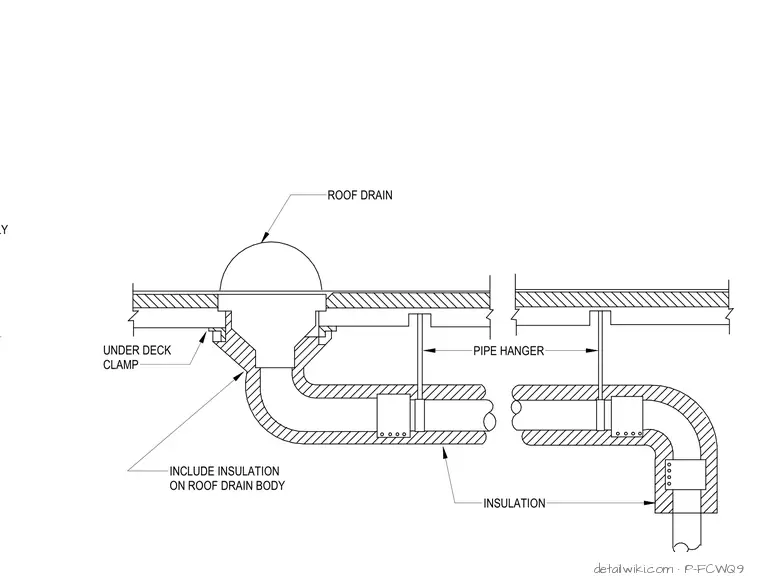

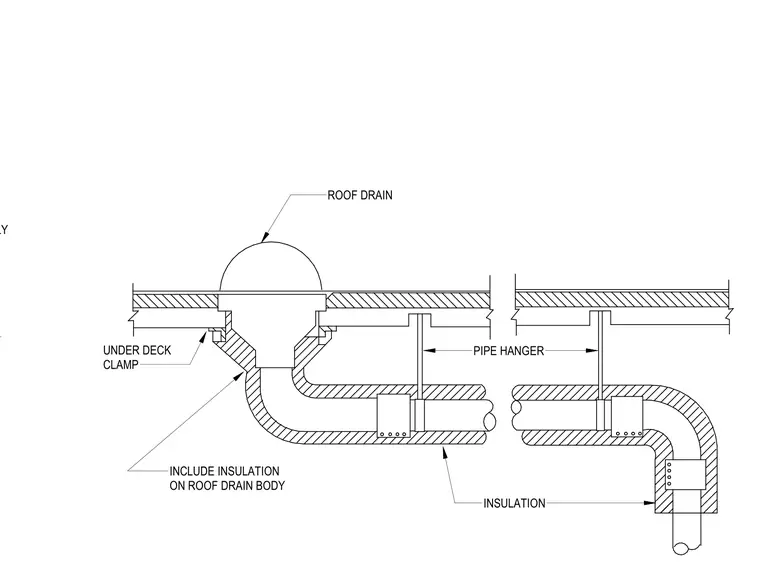

An under-deck clamp secures the roof drain to the roof deck. The roof drain body is fully encased in insulation to prevent condensation. Pipe hangers suspended from the deck structure support the horizontal rainwater piping. Continuous insulation covers all piping segments and fittings to maintain thermal performance.
