Plumbing · P-FCT9K

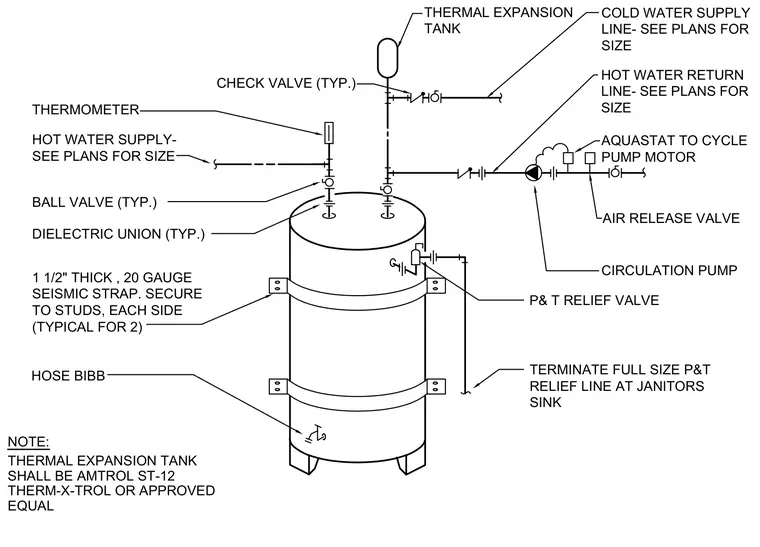

Electric Water Heater Piping Detail

About this detail

An electric water heater is anchored with two twenty-gauge seismic straps secured to studs on each side and features a hose bibb near the base. The cold water supply line connects via a ball valve and dielectric union, with a check valve and an Amtrol ST-12 thermal expansion tank installed above. The hot water supply line includes a thermometer, ball valve, and dielectric union. A circulation pump with an aquaqstat to cycle the pump motor, air release valve, check valve, and dielectric unions ties into the hot water return line. A temperature and pressure relief valve is piped down to terminate full size at a janitor's sink.
