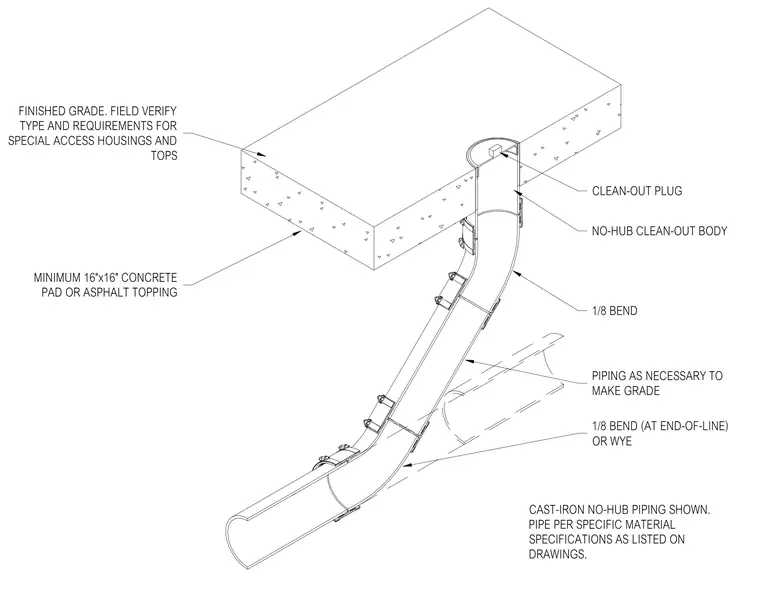

A sanitary clean-out assembly terminates at finished grade within a minimum 16-inch by 16-inch concrete pad or asphalt topping. The assembly incorporates a clean-out plug and a no-hub clean-out body connected to cast-iron no-hub piping. Piping includes an 1/8 bend directly below the clean-out body, additional piping as necessary to make grade, and an 1/8 bend at the end-of-line or wye fitting. Type and requirements for special access housings and tops must be field verified.
CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. FINISHED GRADE. FIELD VERIFY TYPE AND REQUIREMENTS FOR SPECIAL ACCESS HOUSINGS AND TOPS MINIMUM 16"x16" CONCRETE PAD OR ASPHALT TOPPING 1/8 BEND (AT END-OF-LINE) OR WYE PIPING AS NECESSARY TO MAKE GRADE 1/8 BEND NO-HUB CLEAN-OUT BODY CLEAN-OUT PLUG
