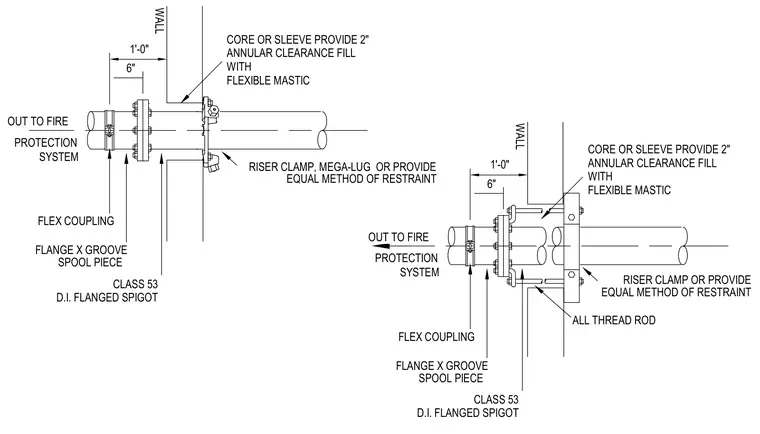

A fire protection pipe penetrates a wall through a core or sleeve providing two inches of annular clearance filled with flexible mastic. The assembly incorporates a class fifty-three ductile iron flanged spigot connected to a flange by groove spool piece and a flex coupling. Mechanical restraint is provided by a riser clamp, mega-lug, all-thread rod, or an equal method of restraint. The pipe extends outward to the fire protection system with specified offsets and dimensions.
1'-0" 6" WALL 6" 1'-0" WALL OUT TO FIRE RISER CLAMP, MEGA-LUG OR PROVIDE EQUAL METHOD OF RESTRAINT CLASS 53 D.I. FLANGED SPIGOT FLANGE X GROOVE SPOOL PIECE FLEX COUPLING SYSTEM PROTECTION CORE OR SLEEVE PROVIDE 2" ANNULAR CLEARANCE FILL WITH FLEXIBLE MASTIC D.I. FLANGED SPIGOT FLANGE X GROOVE SPOOL PIECE FLEX COUPLING EQUAL METHOD OF RESTRAINT RISER CLAMP OR PROVIDE ALL THREAD ROD CLASS 53 SYSTEM OUT TO FIRE PROTECTION CORE OR SLEEVE PROVIDE 2" ANNULAR CLEARANCE FILL WITH FLEXIBLE MASTIC
