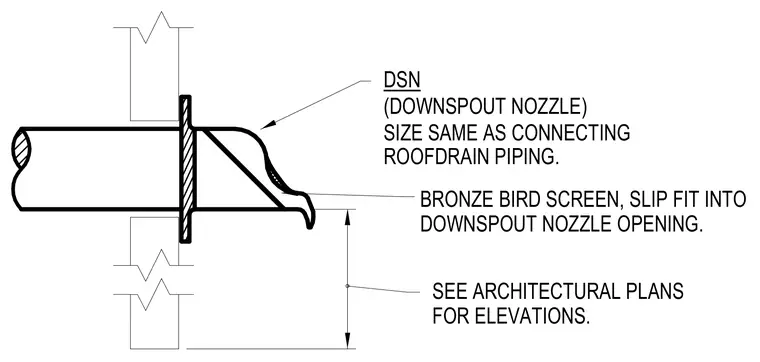

A bronze bird screen slips into the downspout nozzle opening and is sized to match the connecting roof drain piping. The downspout nozzle mounts through the exterior wall or parapet, coordinating with architectural plans for exact elevations.
DOWNSPOUT NOZZLE OPENING. BRONZE BIRD SCREEN, SLIP FIT INTO FOR ELEVATIONS. SEE ARCHITECTURAL PLANS ROOFDRAIN PIPING. SIZE SAME AS CONNECTING (DOWNSPOUT NOZZLE) DSN
