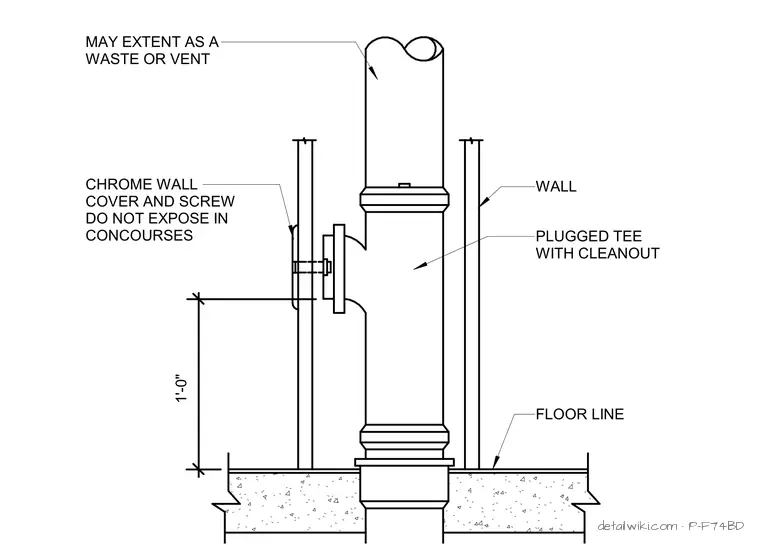

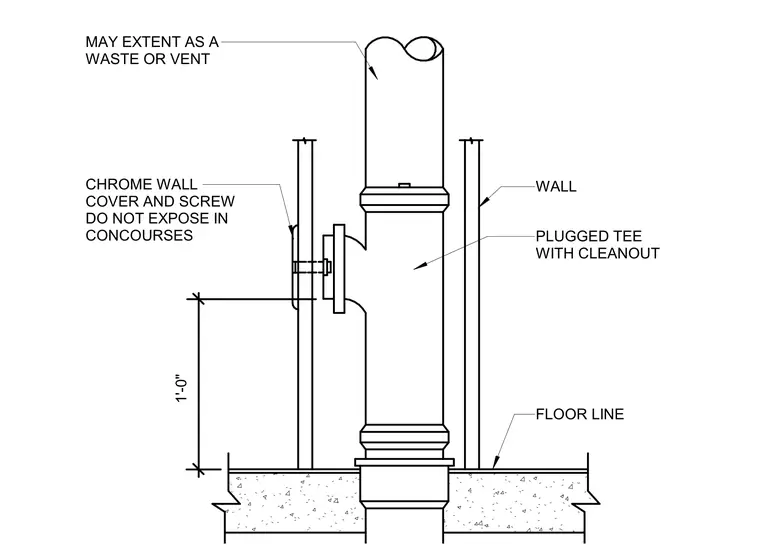

This wall cleanout assembly features a plugged tee connected to a vertical pipe that may extend as a waste or vent. The cleanout is concealed behind a chrome wall cover and screw, positioned one foot above the floor line. The installation is routed through the wall construction while avoiding exposed placements in concourses.
MAY EXTENT AS A WASTE OR VENT CHROME WALL COVER AND SCREW DO NOT EXPOSE IN CONCOURSES 1'-0" WALL PLUGGED TEE WITH CLEANOUT FLOOR LINE
