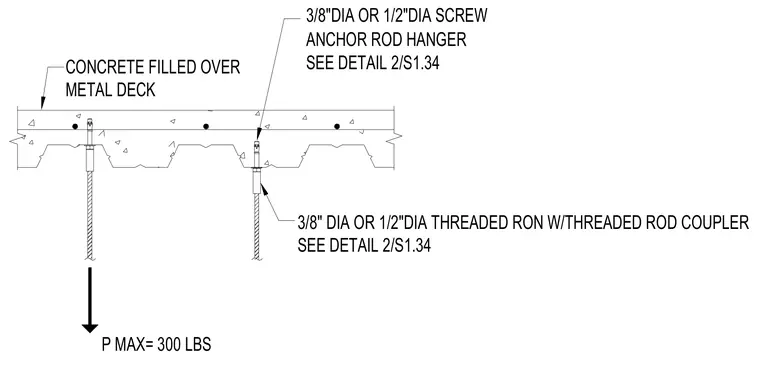

A three-eighths-inch or one-half-inch diameter screw anchor rod hanger is embedded into a concrete filled metal deck assembly. A matching threaded rod with a threaded rod coupler suspends downward from the anchor assembly. The maximum allowable load capacity is three hundred pounds.
3/8"DIA OR 1/2"DIA SCREW ANCHOR ROD HANGER SEE DETAIL 2/S1.34 CONCRETE FILLED OVER METAL DECK 3/8" DIA OR 1/2"DIA THREADED RON W/THREADED ROD COUPLER SEE DETAIL 2/S1.34 P MAX= 300 LBS
