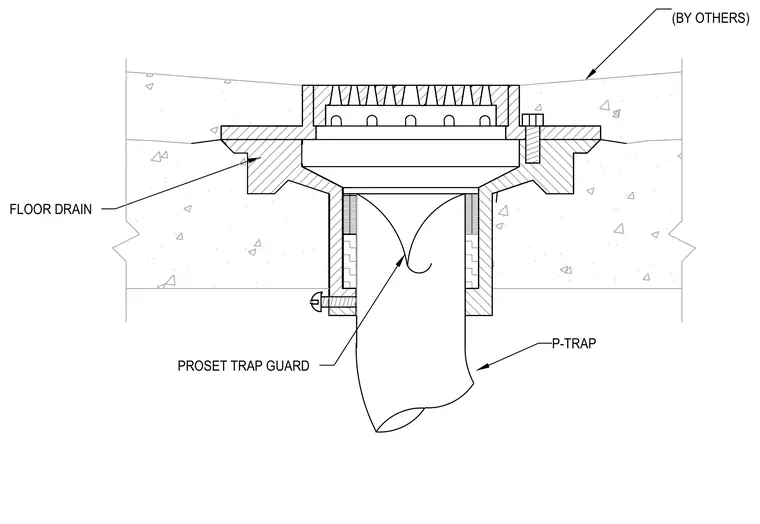

A floor drain is cast into a concrete slab assembly with surrounding floor grading provided by others. The drain body connects below to a P-trap equipped with a Proset trap guard. The surrounding concrete slopes toward the drain grate for positive drainage.
