Storm Water Sump Pump Detail

Elements

About this detail

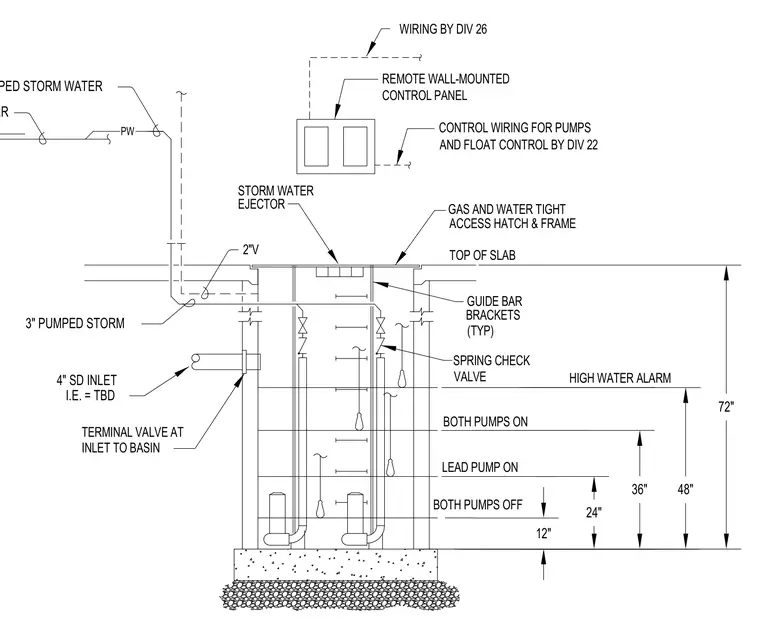

A storm water sump pump basin is set into a concrete floor slab with a gas and water-tight access hatch and frame. The basin houses dual storm water ejector pumps with typical guide bar brackets, spring check valves, and float switches set at specified levels: both pumps off at twelve inches, lead pump on at twenty-four inches, both pumps on at thirty-six inches, and a high water alarm at forty-eight inches within a seventy-two inch total depth. A four-inch storm drain inlet enters the basin through a terminal valve with an invert elevation to be determined, while a three-inch pumped storm discharge pipe and a two-inch vent pipe exit the system. A remote wall-mounted control panel links via wiring by Division 26 for power and Division 22 for pump and float control.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
