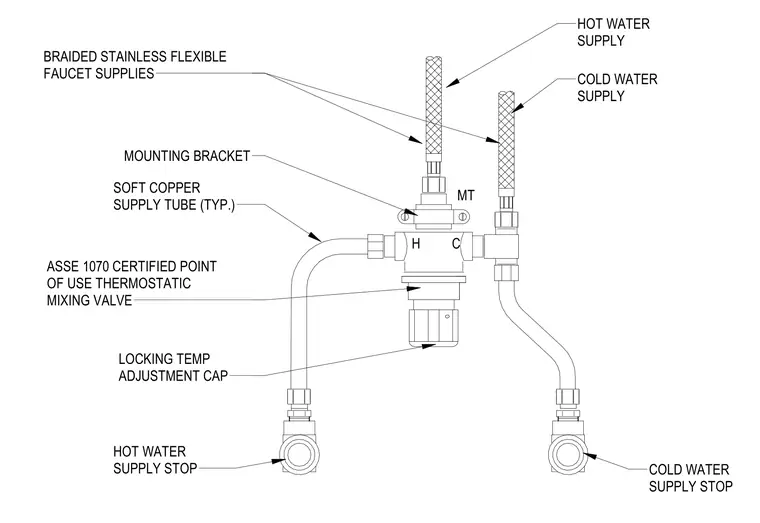

This assembly features an ASSE 1070 certified point-of-use thermostatic mixing valve secured by a mounting bracket. Hot and cold water supply stops connect to the valve via soft copper supply tubes. The valve outlet connects to braided stainless steel flexible faucet supplies for hot and cold water distribution. A locking temperature adjustment cap is located at the base of the mixing valve for precise thermal control.
