Typical Toilet and Shower Room Plumbing Riser Diagram

Elements

Stairs Ceilings Floors / Slabs Connections / Plates

About this detail

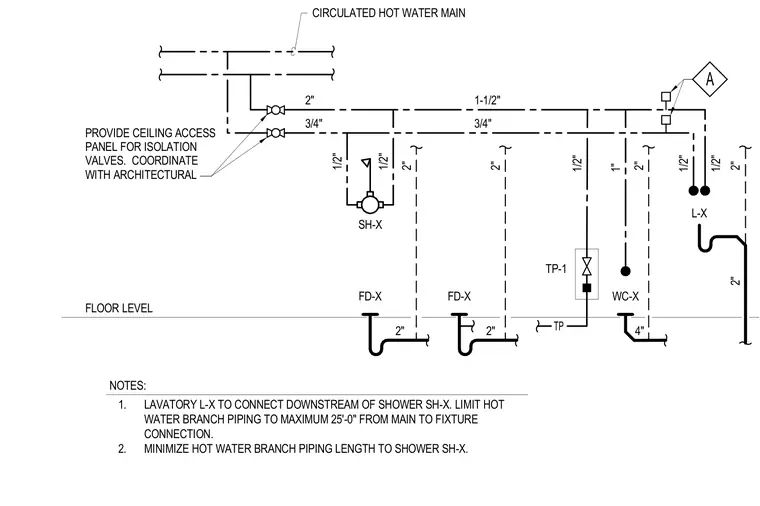

A multi-fixture restroom group branches off a circulated hot water main at floor level, featuring piping layout and sizing connections. Supply lines include isolated valve locations requiring coordinated ceiling access panels, with specific size annotations comprising two-inch, one-and-a-half-inch, three-quarter-inch, and half-inch pipe diameters. Water closet WC-X, shower SH-X, floor drains FD-X, and lavatory L-X connect to the sanitary and supply mains while adhering to specific routing limits, including a maximum twenty-five-foot hot water branch length from the main to the fixture connection. Lavatory L-X connects downstream of shower SH-X while minimizing branch piping lengths.
