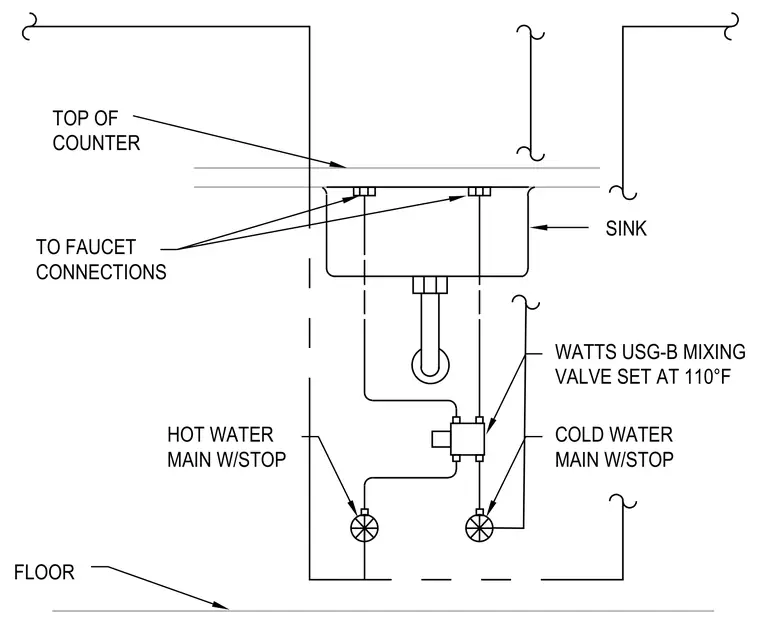

Hot and cold water mains equipped with stops supply water to a Watts USG-B mixing valve set at 110 degrees Fahrenheit. The mixed water output routes upward to faucet connections at the underside of the sink below the top of the counter. Supply lines extend downward toward the floor.
FLOOR CONNECTIONS TO FAUCET TOP OF COUNTER COLD WATER MAIN W/STOP SINK HOT WATER MAIN W/STOP WATTS USG-B MIXING VALVE SET AT 110°F
