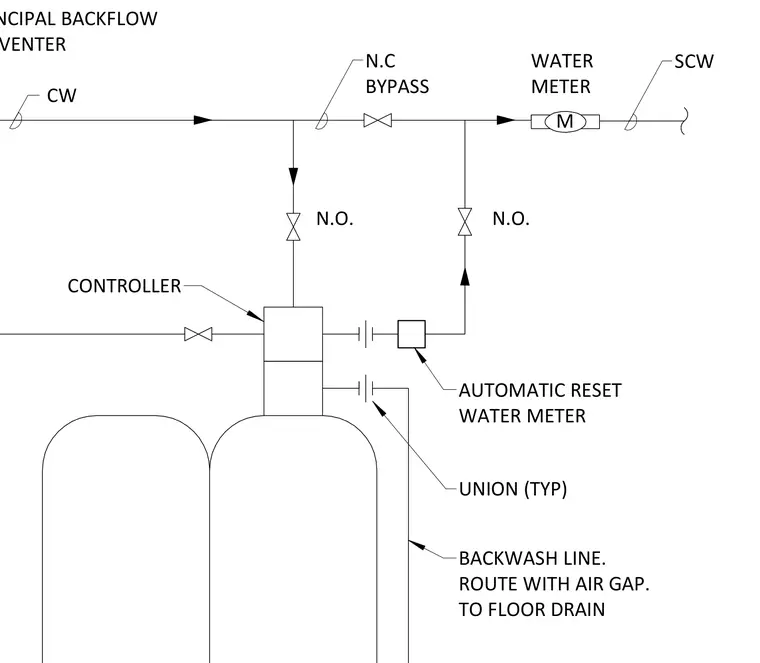

A cold water supply line connects to a reduced pressure principal backflow preventer assembly that includes a normally closed bypass valve and normally open control valves. A water meter is installed on the main line alongside an automatic reset water meter connected via unions. A backwash line extends from the assembly and routes with an air gap to a floor drain.
CW N.C BYPASS SCW M WATER METER N.O. N.O. CONTROLLER AUTOMATIC RESET WATER METER UNION (TYP) BACKWASH LINE. ROUTE WITH AIR GAP. TO FLOOR DRAIN REDUCED PRESSURE PRINCIPAL BACKFLOW PREVENTER
