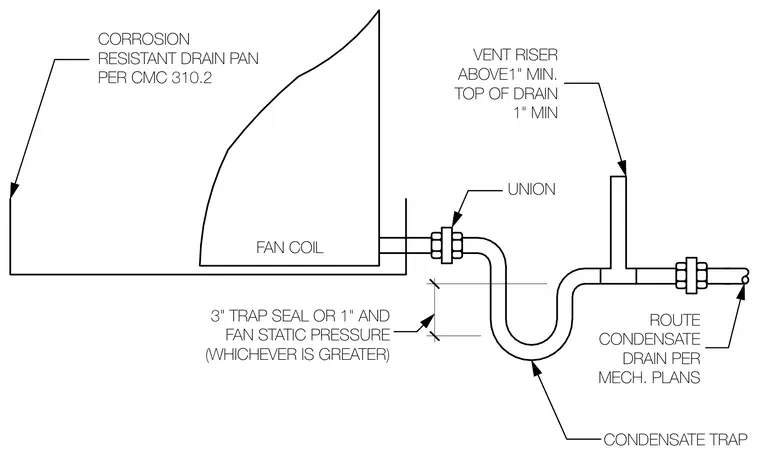

A corrosion-resistant drain pan conforming to CMC 310.2 sits beneath the fan coil unit. The condensate line exits the unit through a union fitting, followed by a condensate trap requiring a 3-inch trap seal or 1 inch plus fan static pressure, whichever is greater. A vent riser extends at least 1 inch above the top of the drain. The condensate drain line continues to route per mechanical plans.
CONDENSATE TRAP ROUTE CONDENSATE DRAIN PER MECH. PLANS VENT RISER ABOVE1" MIN. TOP OF DRAIN 1" MIN 3" TRAP SEAL OR 1" AND FAN STATIC PRESSURE (WHICHEVER IS GREATER) UNION CORROSION RESISTANT DRAIN PAN PER CMC 310.2 FAN COIL
