This longitudinal seismic brace assembly restrains suspended piping systems against lateral and longitudinal seismic loads. A Figure 4A pipe clamp or approved equal secures the brace to the service pipe of specified diameter. A one-inch by seven-foot Schedule 40 black steel pipe acts as the brace member, installed at an angle between 45 and 59 degrees. A universal swivel connects the brace pipe to a Figure 980 sway brace attachment, which anchors directly to the overhead structural steel framing.

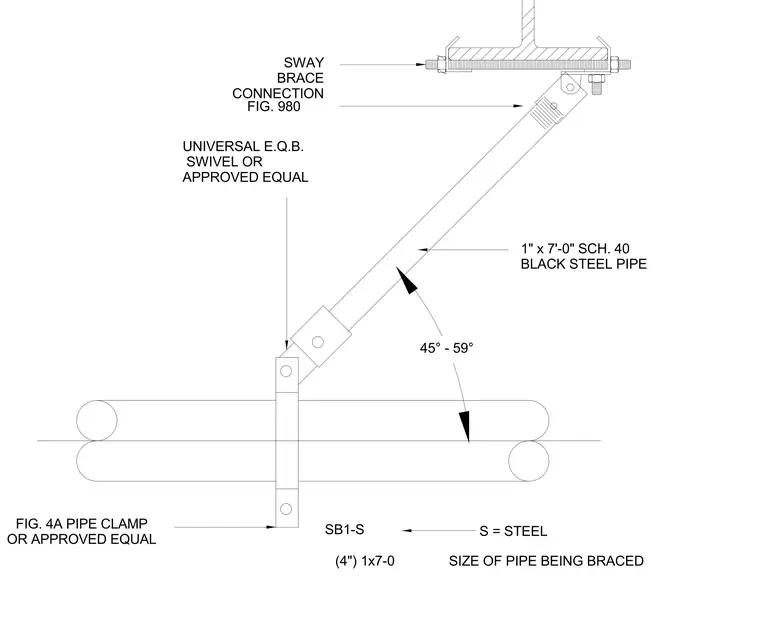

FIG. 4A PIPE CLAMP OR APPROVED EQUAL S = STEEL SB1-S (4") 1x7-0 SIZE OF PIPE BEING BRACED 45° - 59° 1" x 7'-0" SCH. 40 BLACK STEEL PIPE UNIVERSAL E.Q.B. SWIVEL OR APPROVED EQUAL FIG. 980 SWAY BRACE CONNECTION
