Plumbing · P-EC9J5

Concrete Anchor and Pipe Hanger Assemblies

Materials

Concrete Steel Stainless Steel Metal (misc.)

Elements

About this detail

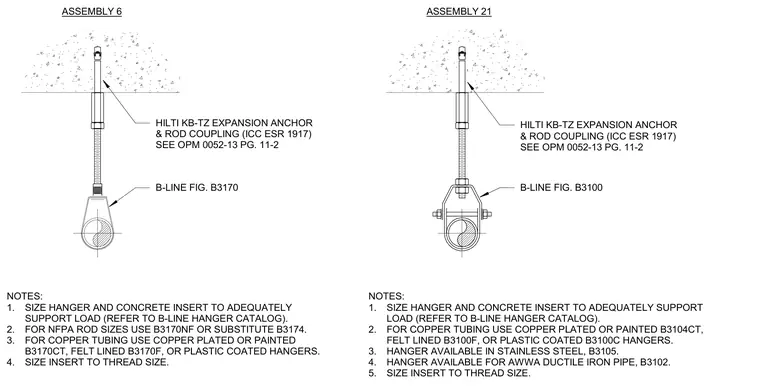

Two suspended pipe hanger assemblies are anchored overhead into concrete using Hilti KB-TZ expansion anchors paired with rod couplings. Threaded rods extend downward to support B-Line pipe hangers, specifically utilizing Fig. B3170 and Fig. B3100 configurations. Sizing for hangers and concrete inserts must be selected to adequately support the applied load per manufacturer specifications. Material options include copper-plated, felt-lined, plastic-coated, or stainless steel components depending on the specific piping material used.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
