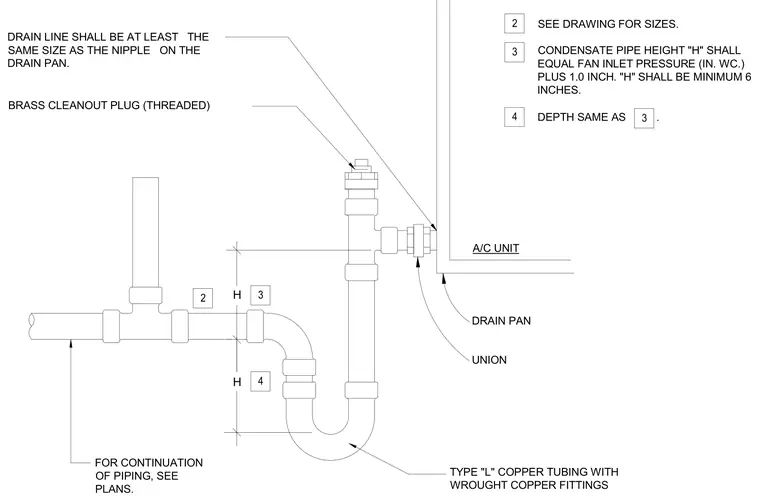

The condensate drain line connects to the air handling unit drain pan via a union and is sized at least the same as the nipple on the drain pan. The piping consists of type L copper tubing joined with wrought copper fittings and includes a threaded brass cleanout plug at the top of the vertical drop. Condensate pipe height "H" must equal fan inlet pressure in inches of water column plus one inch, with a minimum height of six inches. For continuation of piping, see the plumbing plans.
2 3 4 4 2 3 3 BRASS CLEANOUT PLUG (THREADED) A/C UNIT DRAIN LINE SHALL BE AT LEAST THE SAME SIZE AS THE NIPPLE ON THE DRAIN PAN. SEE DRAWING FOR SIZES. CONDENSATE PIPE HEIGHT "H" SHALL EQUAL FAN INLET PRESSURE (IN. WC.) PLUS 1.0 INCH. "H" SHALL BE MINIMUM 6 INCHES. DEPTH SAME AS . FOR CONTINUATION OF PIPING, SEE PLANS. TYPE "L" COPPER TUBING WITH WROUGHT COPPER FITTINGS DRAIN PAN UNION H H
