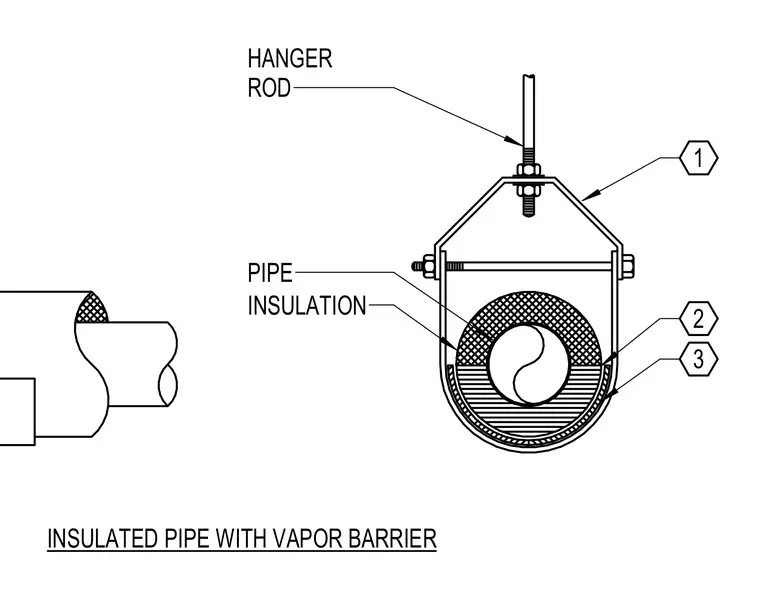

An insulated pipe is supported by a threaded hanger rod connected to a clevis hanger assembly. The pipe is wrapped in insulation and enclosed within a protective vapor barrier layer. Nuts secure the hanger rod to the upper yoke of the clevis hanger.
