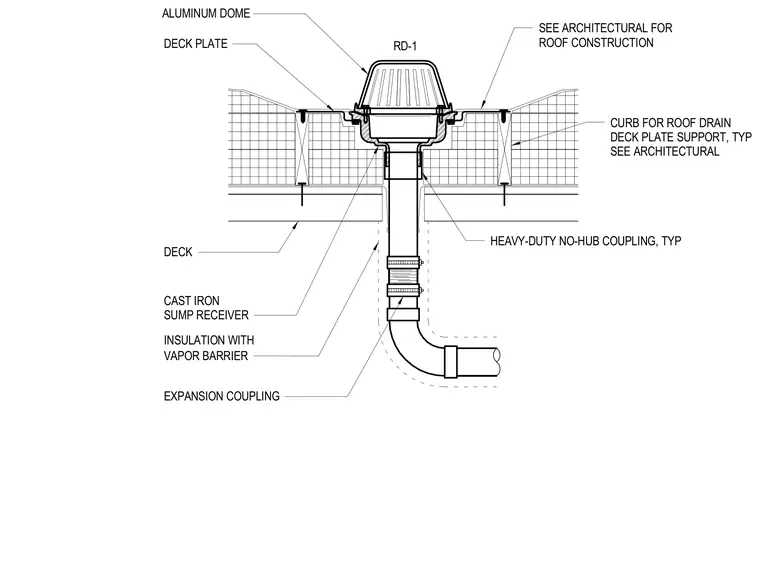

This roof drain assembly consists of a cast iron sump receiver and an aluminum dome labeled RD-1, mounted within a deck plate supported by structural curbs as detailed per architectural drawings. The drain body connects to the drainage piping below the roof deck using a heavy-duty no-hub coupling and an expansion coupling. Insulation with a vapor barrier surrounds the drop pipe assembly beneath the roof deck.
CAST IRON SUMP RECEIVER DECK EXPANSION COUPLING INSULATION WITH VAPOR BARRIER ALUMINUM DOME DECK PLATE RD-1 SEE ARCHITECTURAL FOR ROOF CONSTRUCTION CURB FOR ROOF DRAIN DECK PLATE SUPPORT, TYP SEE ARCHITECTURAL HEAVY-DUTY NO-HUB COUPLING, TYP
