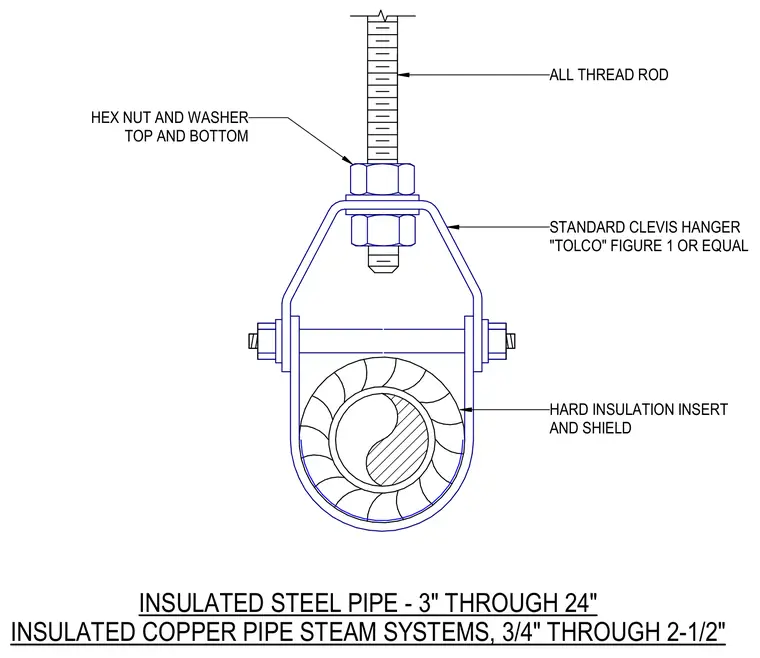

An all-thread rod supports a standard clevis hanger, such as Tolco Figure 1 or equal, secured by hex nuts and washers at both the top and bottom of the hanger yoke. The insulated steel or copper pipe rests inside a hard insulation insert and protective shield captured by the clevis loop.
ALL THREAD ROD STANDARD CLEVIS HANGER "TOLCO" FIGURE 1 OR EQUAL HARD INSULATION INSERT AND SHIELD HEX NUT AND WASHER TOP AND BOTTOM INSULATED STEEL PIPE - 3" THROUGH 24" INSULATED COPPER PIPE STEAM SYSTEMS, 3/4" THROUGH 2-1/2"
