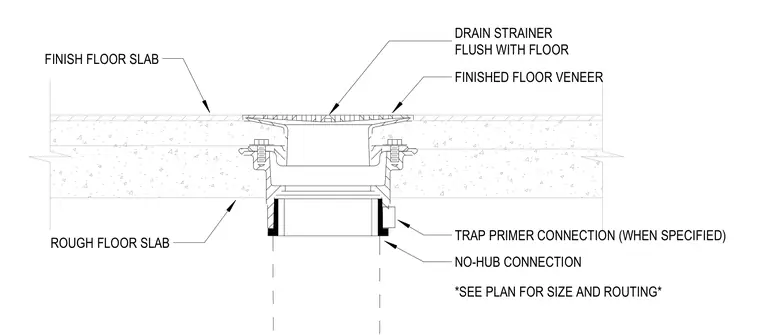

A floor drain assembly is installed within a concrete rough floor slab with the drain strainer flush with the finish floor slab and finished floor veneer. The drain body features an optional trap primer connection and connects to subsurface piping via a no-hub connection. Drain size and routing are determined per plan.
DRAIN STRAINER FLUSH WITH FLOOR FINISH FLOOR SLAB *SEE PLAN FOR SIZE AND ROUTING* NO-HUB CONNECTION ROUGH FLOOR SLAB FINISHED FLOOR VENEER TRAP PRIMER CONNECTION (WHEN SPECIFIED)
