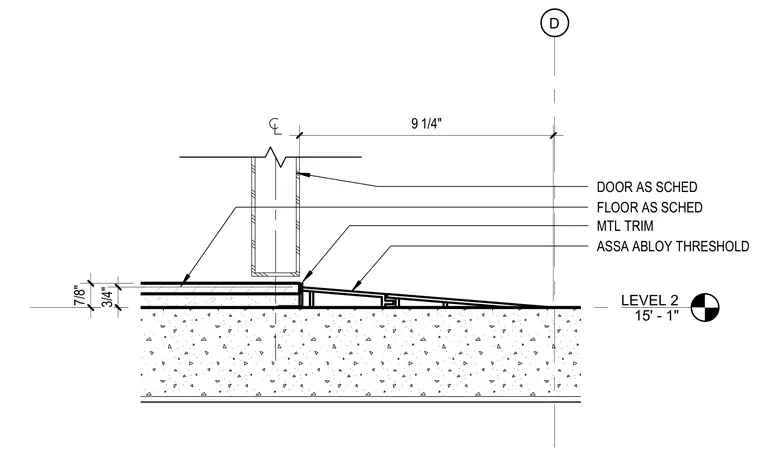

An exterior door sill assembly transitions from a concrete slab supporting a door frame to an exterior metal threshold by Assa Abloy. The floor finish is applied as scheduled over the slab, measuring three-quarters of an inch thick alongside a seven-eighths-inch finish dimension. Metal trim meets the threshold, which spans nine and one-quarter inches from the door centerline to the reference grid line D at Level 2.
LEVEL 2 15' - 1" D DOOR AS SCHED ASSA ABLOY THRESHOLD 9 1/4" 3/4" 7/8" MTL TRIM FLOOR AS SCHED
