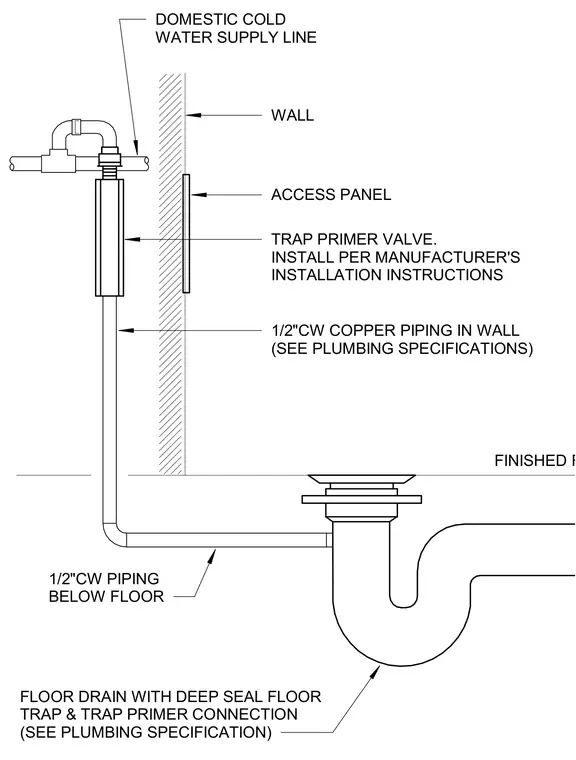

A trap primer valve connects to the domestic cold water supply line within the wall cavity, accessible via a wall-mounted access panel. A half-inch cold water copper pipe routes from the valve down through the wall and below the finished floor to supply a floor drain with a deep seal floor trap. The installation proceeds per manufacturer instructions and plumbing specifications.
DOMESTIC COLD WATER SUPPLY LINE ACCESS PANEL TRAP PRIMER VALVE. INSTALL PER MANUFACTURER'S INSTALLATION INSTRUCTIONS WALL 1/2"CW COPPER PIPING IN WALL (SEE PLUMBING SPECIFICATIONS) FINISHED FLOOR FLOOR DRAIN WITH DEEP SEAL FLOOR TRAP & TRAP PRIMER CONNECTION (SEE PLUMBING SPECIFICATION) 1/2"CW PIPING BELOW FLOOR
