An iron body cleanout connects to sewer piping with an optional one-eighth bend applied if the cleanout occurs at the end of the line. The indoor assembly terminates at a cleanout in concrete or a finished floor slab. The outdoor assembly consists of a yard box featuring a cast iron traffic cover and rim, set within a four-inch thick concrete collar extending twelve inches all around in paved areas below finished grade.

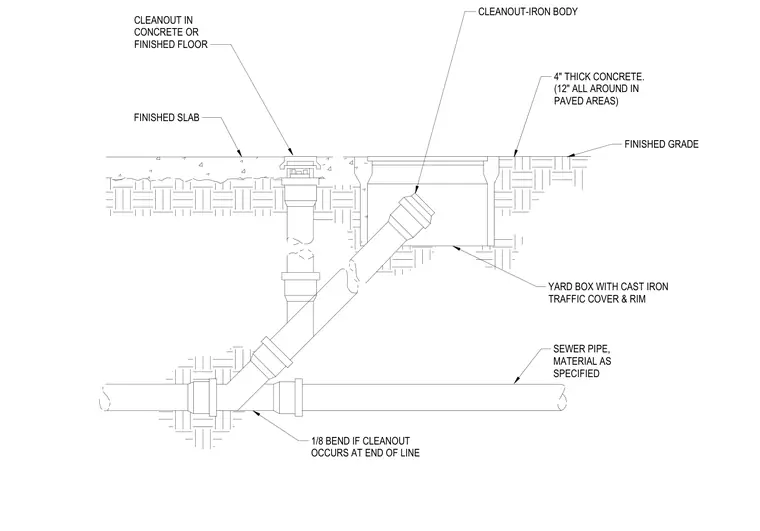

CLEANOUT-IRON BODY 1/8 BEND IF CLEANOUT OCCURS AT END OF LINE CLEANOUT IN CONCRETE OR FINISHED FLOOR FINISHED SLAB SEWER PIPE, MATERIAL AS SPECIFIED FINISHED GRADE 4" THICK CONCRETE. (12" ALL AROUND IN PAVED AREAS) YARD BOX WITH CAST IRON TRAFFIC COVER & RIM
