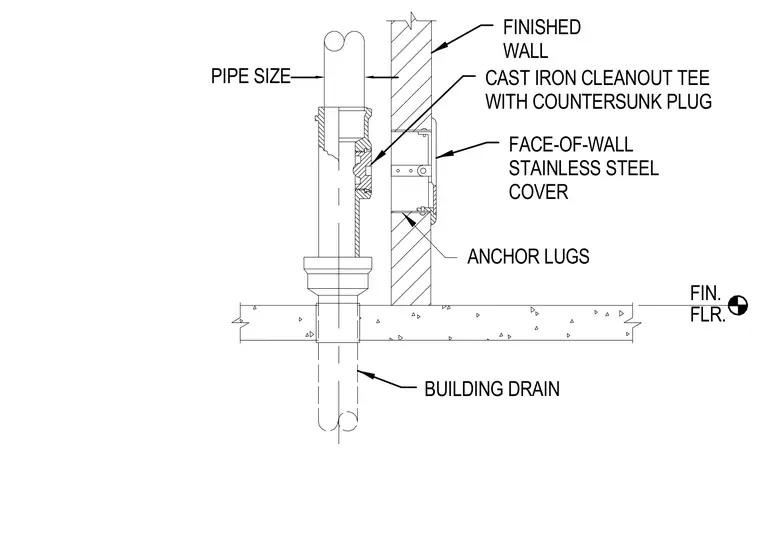

A building drain pipe connects to a cast iron cleanout tee fitted with a countersunk plug. The cleanout tee is integrated into the drainage piping and aligned with a finished wall penetration. A face-of-wall stainless steel cover with anchor lugs secures into the finished wall assembly to provide access to the cleanout plug.
FINISHED WALL CAST IRON CLEANOUT TEE WITH COUNTERSUNK PLUG ANCHOR LUGS FACE-OF-WALL STAINLESS STEEL COVER BUILDING DRAIN PIPE SIZE FLR. FIN.
