A hollow metal frame head with a finish matching adjacent metal panels is anchored to a partition wall per schedule using a minimum of three wall anchors per jamb and attached with a minimum of two number eight sheet metal screws. The assembly interfaces with a WP-07 metal panel wall system and a gasket as specified in the schedule. The partition is constructed with specified framing and finishes.

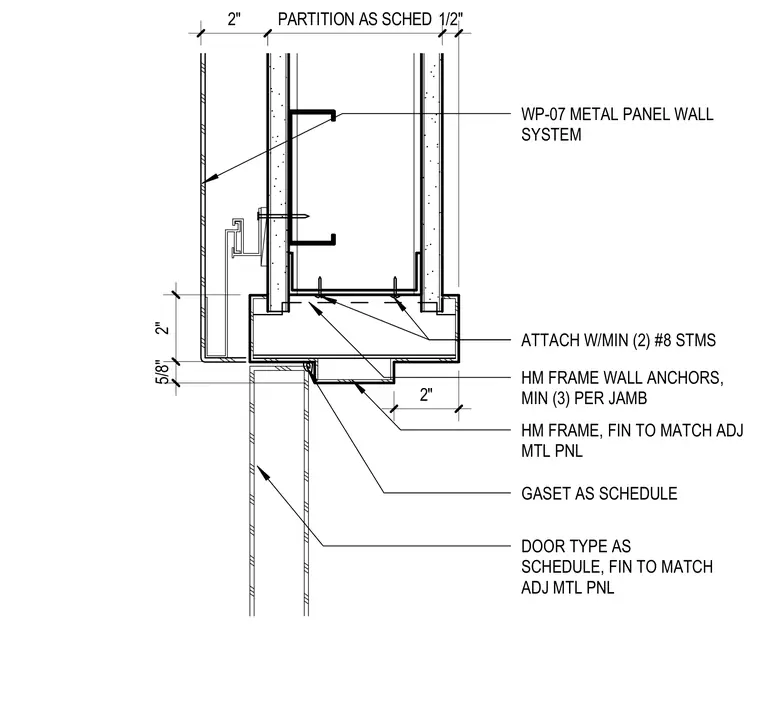

HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME, FIN TO MATCH ADJ MTL PNL ATTACH W/MIN (2) #8 STMS GASET AS SCHEDULE DOOR TYPE AS SCHEDULE, FIN TO MATCH ADJ MTL PNL WP-07 METAL PANEL WALL SYSTEM 2" PARTITION AS SCHED 1/2" 2" 5/8" 2"
