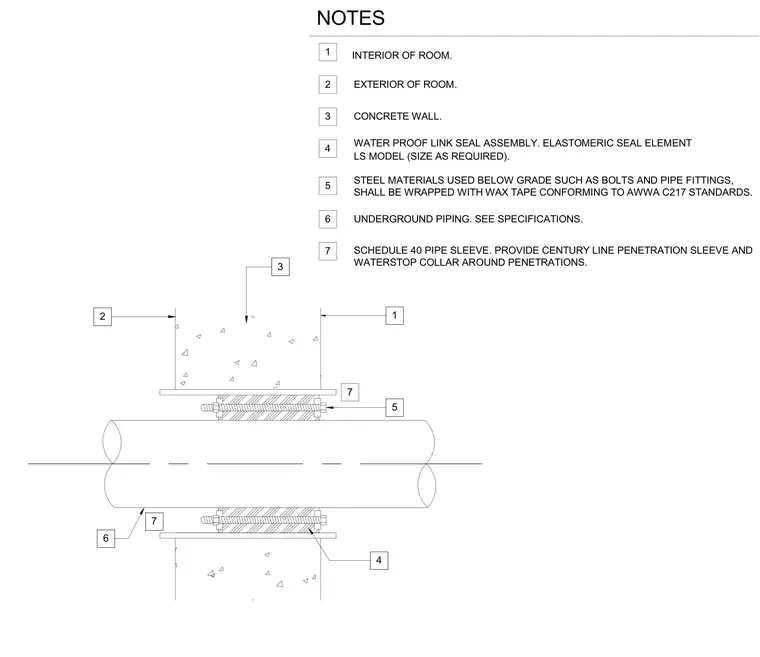

An underground pipe penetrates a concrete wall through a schedule forty pipe sleeve equipped with a center-set waterstop collar. A waterproof link-seal assembly featuring an elastomeric seal element sized as required fills the annular space between the pipe and sleeve. All below-grade steel components including bolts and pipe fittings are wrapped with wax tape conforming to AWWA C217 standards.
1 2 3 4 5 6 7 7 6 5 1 2 3 4 7 NOTES INTERIOR OF ROOM. EXTERIOR OF ROOM. CONCRETE WALL. WATER PROOF LINK SEAL ASSEMBLY. ELASTOMERIC SEAL ELEMENT LS MODEL (SIZE AS REQUIRED). STEEL MATERIALS USED BELOW GRADE SUCH AS BOLTS AND PIPE FITTINGS, SHALL BE WRAPPED WITH WAX TAPE CONFORMING TO AWWA C217 STANDARDS. UNDERGROUND PIPING. SEE SPECIFICATIONS. SCHEDULE 40 PIPE SLEEVE. PROVIDE CENTURY LINE PENETRATION SLEEVE AND WATERSTOP COLLAR AROUND PENETRATIONS.
