A trap primer valve is mounted to a wall using a four-inch length of P-1000 Unistrut secured with two 1/4-inch by 2-inch toggle bolts. One-half-inch supply tubing connects to the valve assembly, with material specifications determined per project requirements. The installation maintains appropriate clearance from the wall surface for piping and valve maintenance.

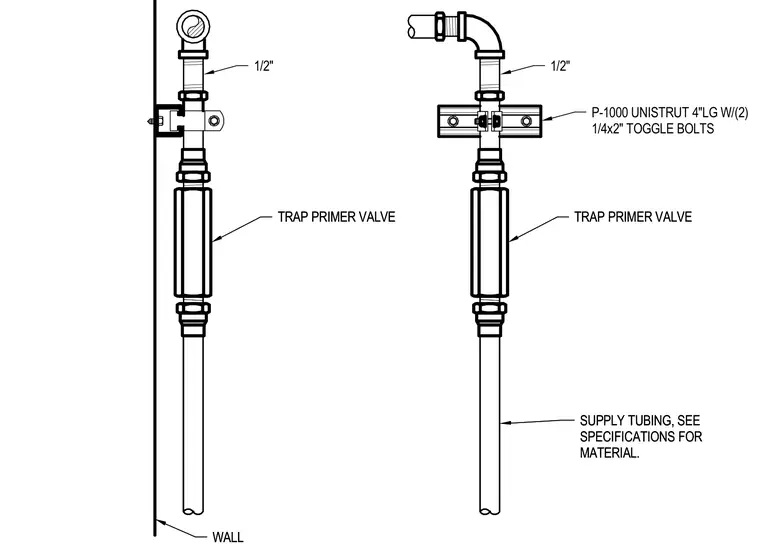

SUPPLY TUBING, SEE SPECIFICATIONS FOR MATERIAL. TRAP PRIMER VALVE TRAP PRIMER VALVE WALL SUPPLY TUBING, SEE SPECIFICATIONS FOR MATERIAL. TRAP PRIMER VALVE P-1000 UNISTRUT 4"LG W/(2) 1/4x2" TOGGLE BOLTS 1/2" 1/2" TRAP PRIMER VALVE WALL
