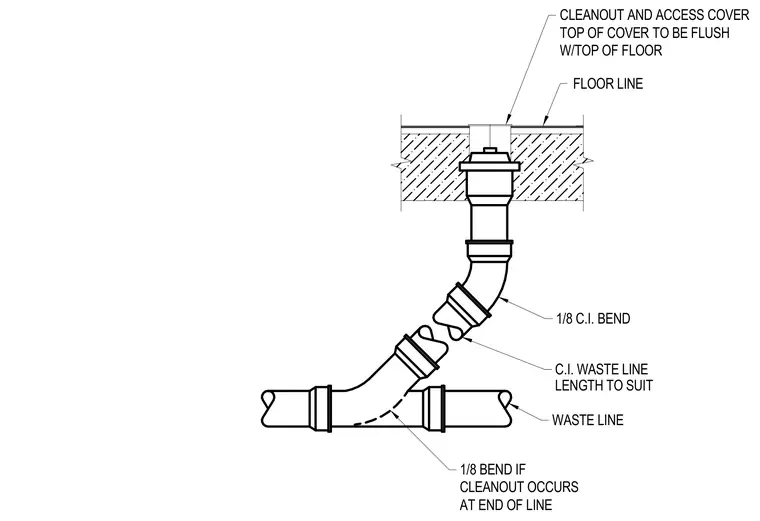

A cleanout and access cover are installed with the top of the cover flush to the finished floor line. The assembly connects to a cast-iron waste line featuring an eighth cast-iron bend and a length to suit field conditions. An eighth bend is provided if the cleanout occurs at the end of the line.
W/TOP OF FLOOR CLEANOUT AND ACCESS COVER TOP OF COVER TO BE FLUSH FLOOR LINE AT END OF LINE LENGTH TO SUIT 1/8 BEND IF CLEANOUT OCCURS WASTE LINE C.I. WASTE LINE 1/8 C.I. BEND
