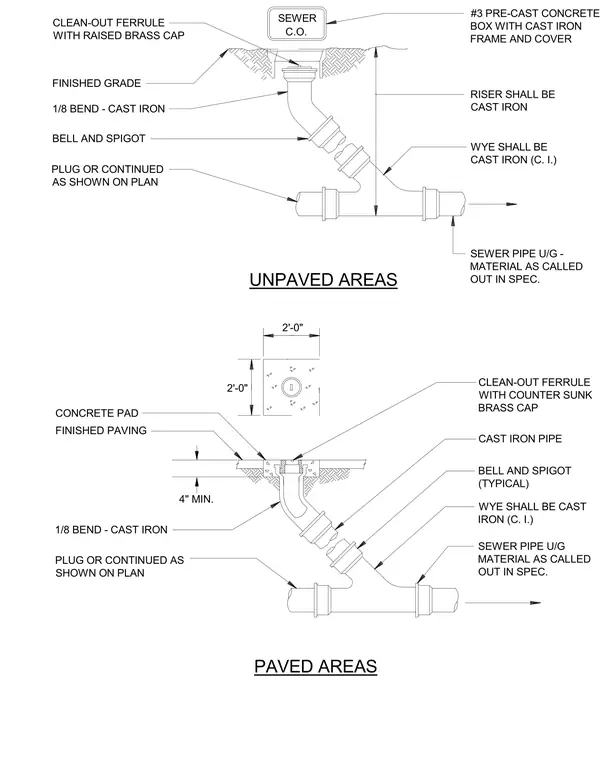

The unpaved area cleanout assembly connects to an underground cast iron sewer pipe utilizing a cast iron wye fitting and an 1/8 bend leading up to a cleanout ferrule with a raised brass cap set flush with the finished grade inside a pre-cast concrete box with a cast iron frame and cover. The paved area detail features a similar cast iron piping configuration extending up through a minimum four-inch concrete pad and finished paving, terminating in a cleanout ferrule with a countersunk brass cap centered within a two-foot square concrete pad. Both configurations utilize bell and spigot joint connections and include plugged or continuing piping runs as specified on the plan.
UNPAVED AREAS PAVED AREAS 1/8 BEND - CAST IRON CONCRETE PAD FINISHED PAVING 4" MIN. 2'-0" 2'-0" CAST IRON PIPE 1/8 BEND - CAST IRON BELL AND SPIGOT FINISHED GRADE C.O. SEWER CLEAN-OUT FERRULE WITH RAISED BRASS CAP #3 PRE-CAST CONCRETE BOX WITH CAST IRON FRAME AND COVER WYE SHALL BE CAST IRON (C. I.) RISER SHALL BE CAST IRON SEWER PIPE U/G - MATERIAL AS CALLED OUT IN SPEC. PLUG OR CONTINUED AS SHOWN ON PLAN PLUG OR CONTINUED AS SHOWN ON PLAN CLEAN-OUT FERRULE WITH COUNTER SUNK BRASS CAP BELL AND SPIGOT (TYPICAL) WYE SHALL BE CAST IRON (C. I.) SEWER PIPE U/G MATERIAL AS CALLED OUT IN SPEC.
