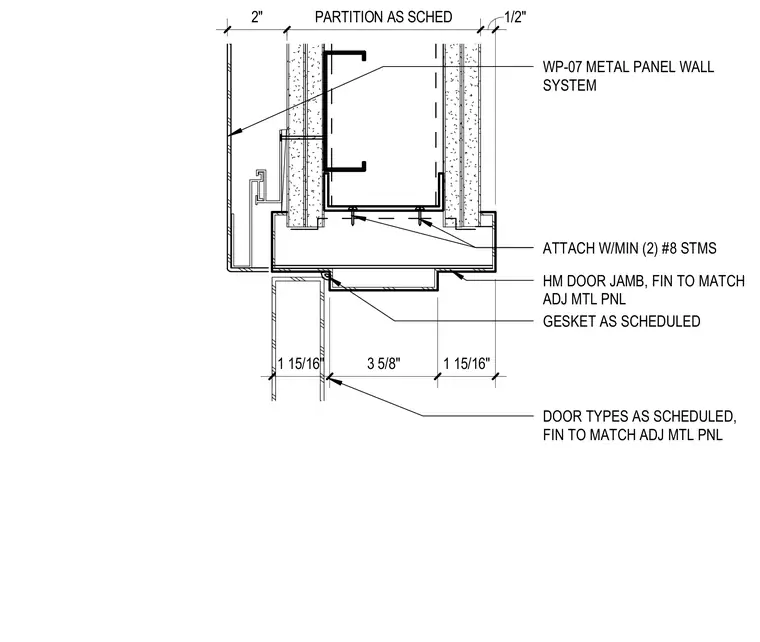

A door head connection within a partition framed with metal studs scheduled per plan. A hollow metal door jamb with a finish to match the adjacent metal panel is attached using a minimum of two number eight sheet metal screws. A gasket is provided as scheduled at the door head interface. The assembly integrates with a metal panel wall system.
2" PARTITION AS SCHED 1/2" DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ MTL PNL HM DOOR JAMB, FIN TO MATCH ADJ MTL PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS 1 15/16" 3 5/8" 1 15/16" WP-07 METAL PANEL WALL SYSTEM
