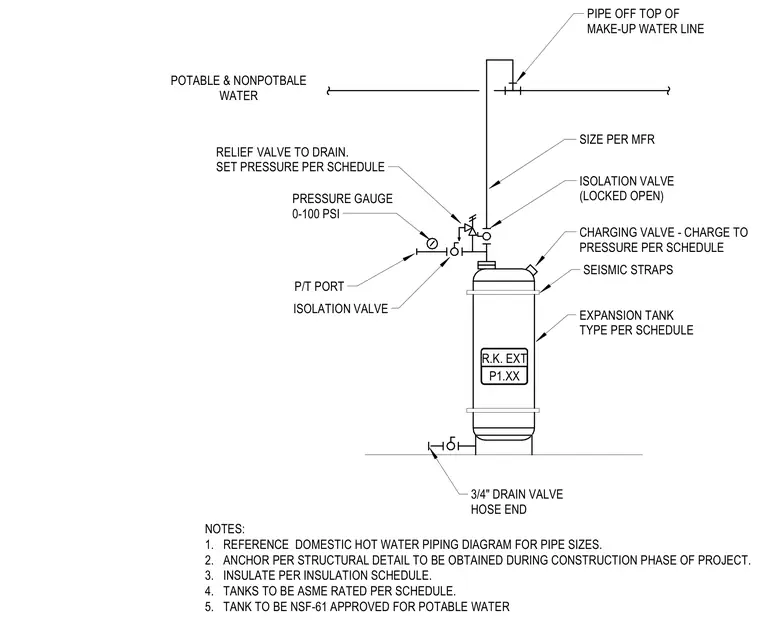

An expansion tank connects to a make-up water line with isolation valves and a locked-open isolation valve positioned upstream of a relief valve set to drain. A pressure gauge, pressure-temperature test port, and charging valve are integrated into the piping configuration. A three-quarter-inch drain valve with a hose end is located at the base of the tank. Seismic straps secure the tank according to manufacturer specifications, and anchors are installed per structural details.
NOTES: 1. REFERENCE DOMESTIC HOT WATER PIPING DIAGRAM FOR PIPE SIZES. 2. ANCHOR PER STRUCTURAL DETAIL TO BE OBTAINED DURING CONSTRUCTION PHASE OF PROJECT. 3. INSULATE PER INSULATION SCHEDULE. 4. TANKS TO BE ASME RATED PER SCHEDULE. 5. TANK TO BE NSF-61 APPROVED FOR POTABLE WATER 3/4" DRAIN VALVE HOSE END EXPANSION TANK TYPE PER SCHEDULE CHARGING VALVE - CHARGE TO PRESSURE PER SCHEDULE ISOLATION VALVE (LOCKED OPEN) PIPE OFF TOP OF MAKE-UP WATER LINE POTABLE & NONPOTBALE WATER PRESSURE GAUGE 0-100 PSI ISOLATION VALVE P/T PORT RELIEF VALVE TO DRAIN. SET PRESSURE PER SCHEDULE SEISMIC STRAPS SIZE PER MFR R.K. EXT P1.XX
