Typical Fuel Oil Tank Connections Detail

Elements

Connections / Plates Roof / Floor Openings

About this detail

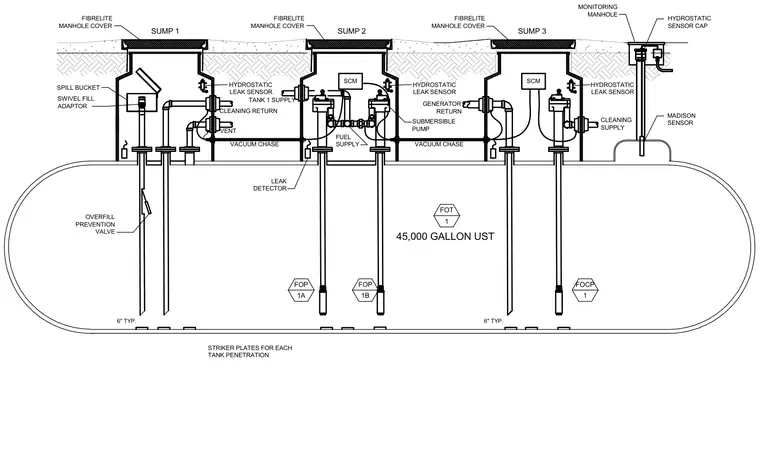

An underground storage tank features multiple containment sumps topped with Fibrelite manhole covers at grade. Sump one houses the spill bucket, swivel fill adaptor, vent line, and an overfill prevention valve extending down alongside striker plates at the tank bottom. Sumps two and three contain submersible pumps, fuel supply and return lines, cleaning return lines, generator return lines, vacuum chases, and hydrostatic leak sensors. Additional monitoring manholes contain hydrostatic sensor caps and Madison sensors tied to SCM leak detectors.
