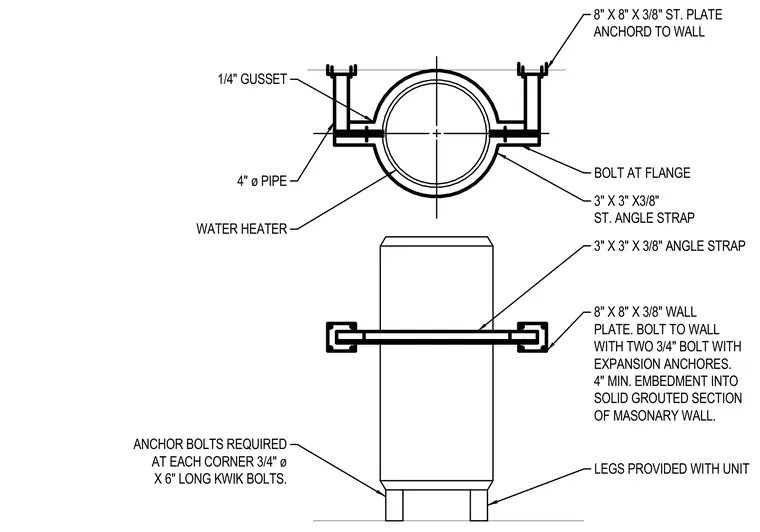

The water heater unit rests on provided legs secured at each corner with three-quarter-inch diameter by six-inch long Kwik Bolts. A three-inch by three-inch by three-eighths-inch steel angle strap wraps around the tank body and connects to eight-inch by eight-inch by three-eighths-inch wall plates. These wall plates anchor to the masonry wall using two three-quarter-inch bolts with expansion anchors requiring a four-inch minimum embedment into a solid grouted section. The top collar assembly incorporates a four-inch diameter pipe secured with three-inch by three-inch by three-eighths-inch steel angle straps bolted at the flange and reinforced by one-quarter-inch gusset plates.
LEGS PROVIDED WITH UNIT 8" X 8" X 3/8" WALL PLATE. BOLT TO WALL WITH TWO 3/4" BOLT WITH EXPANSION ANCHORES. 4" MIN. EMBEDMENT INTO SOLID GROUTED SECTION OF MASONARY WALL. 3" X 3" X 3/8" ANGLE STRAP 3" X 3" X3/8" ST. ANGLE STRAP BOLT AT FLANGE 8" X 8" X 3/8" ST. PLATE ANCHORD TO WALL ANCHOR BOLTS REQUIRED AT EACH CORNER 3/4" ø X 6" LONG KWIK BOLTS. WATER HEATER 4" ø PIPE 1/4" GUSSET
