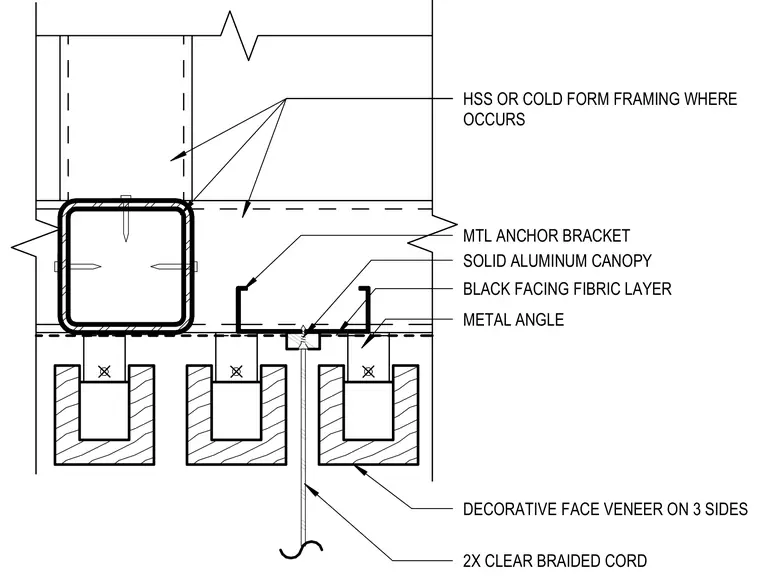

A solid aluminum canopy is supported by a metal anchor bracket attached to hollow structural section or cold-formed framing where occurs. A black facing fabric layer and metal angle line the assembly. Decorative face veneer on three sides is integrated with two times clear braided cord.
DECORATIVE FACE VENEER ON 3 SIDES BLACK FACING FIBRIC LAYER SOLID ALUMINUM CANOPY 2X CLEAR BRAIDED CORD METAL ANGLE MTL ANCHOR BRACKET HSS OR COLD FORM FRAMING WHERE OCCURS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
