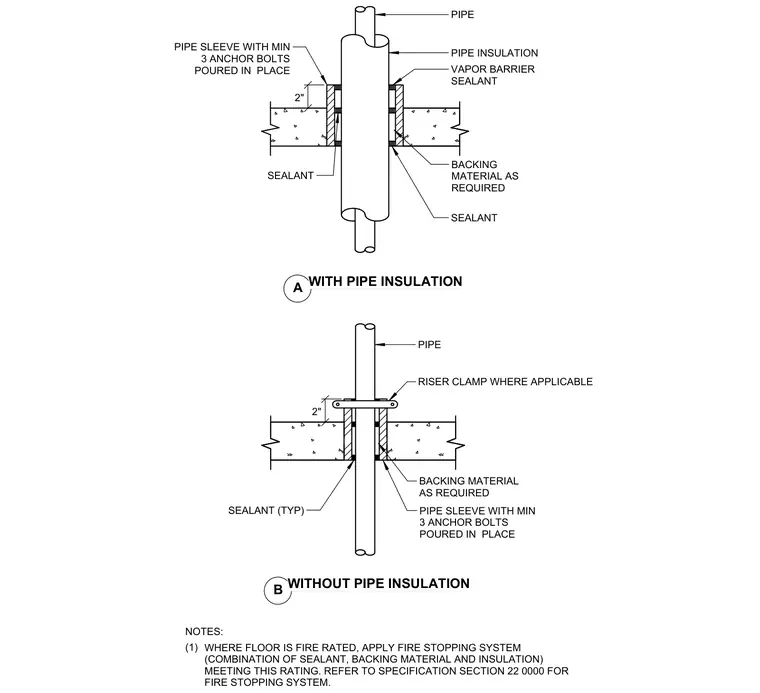

A vertical pipe penetrates a poured-in-place concrete floor slab through a pipe sleeve secured with a minimum of three cast-in-place anchor bolts. The annular space between the pipe and sleeve is sealed with backing material and sealant, with vapor barrier applied where pipe insulation is present. An optional riser clamp supports uninsulated piping above the floor assembly. Firestopping systems of sealant, backing material, and insulation are applied at fire-rated floor assemblies per project specifications.
2" PIPE PIPE INSULATION SEALANT SEALANT PIPE SLEEVE WITH MIN 3 ANCHOR BOLTS POURED IN PLACE BACKING MATERIAL AS REQUIRED VAPOR BARRIER SEALANT NOTES: (1) SEALANT (TYP) RISER CLAMP WHERE APPLICABLE PIPE PIPE SLEEVE WITH MIN 3 ANCHOR BOLTS POURED IN PLACE BACKING MATERIAL AS REQUIRED WHERE FLOOR IS FIRE RATED, APPLY FIRE STOPPING SYSTEM (COMBINATION OF SEALANT, BACKING MATERIAL AND INSULATION) MEETING THIS RATING. REFER TO SPECIFICATION SECTION 22 0000 FOR FIRE STOPPING SYSTEM. 2" WITH PIPE INSULATION WITHOUT PIPE INSULATION A B
