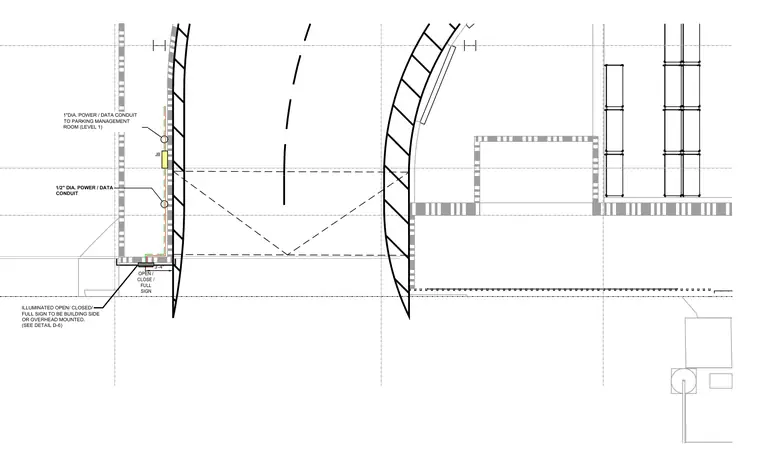

An illuminated open close and full sign mounts on the building side or overhead at three feet four inches above the floor level. A one-half-inch diameter power and data conduit feeds the sign and connects to a junction box. A one-inch diameter power and data conduit routes from the junction box to the parking management room on level one.
OPEN / CLOSE / FULL SIGN 1/2" DIA. POWER / DATA CONDUIT ILLUMINATED OPEN/ CLOSED/ FULL SIGN TO BE BUILDING SIDE OR OVERHEAD MOUNTED. (SEE DETAIL D-6) JB 3'-4" 1"DIA. POWER / DATA CONDUIT TO PARKING MANAGEMENT ROOM (LEVEL 1)
