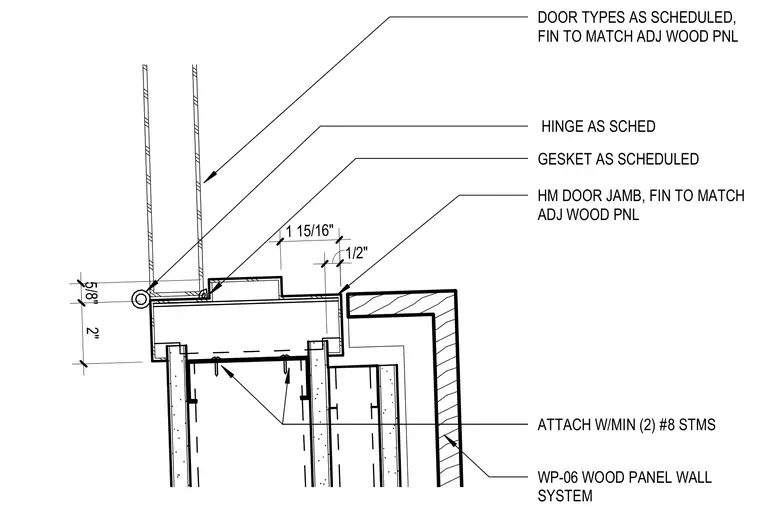

A hollow metal door jamb is set adjacent to a wood panel wall system with a finish matching the adjacent wood panels. A scheduled gasket is positioned at the door interface, and hinges are provided per the door schedule. The door leaf is attached with a minimum of two number eight sheet metal screws.
1/2" 2" 5/8" 1 15/16" HINGE AS SCHED WP-06 WOOD PANEL WALL SYSTEM DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ WOOD PNL HM DOOR JAMB, FIN TO MATCH ADJ WOOD PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS
