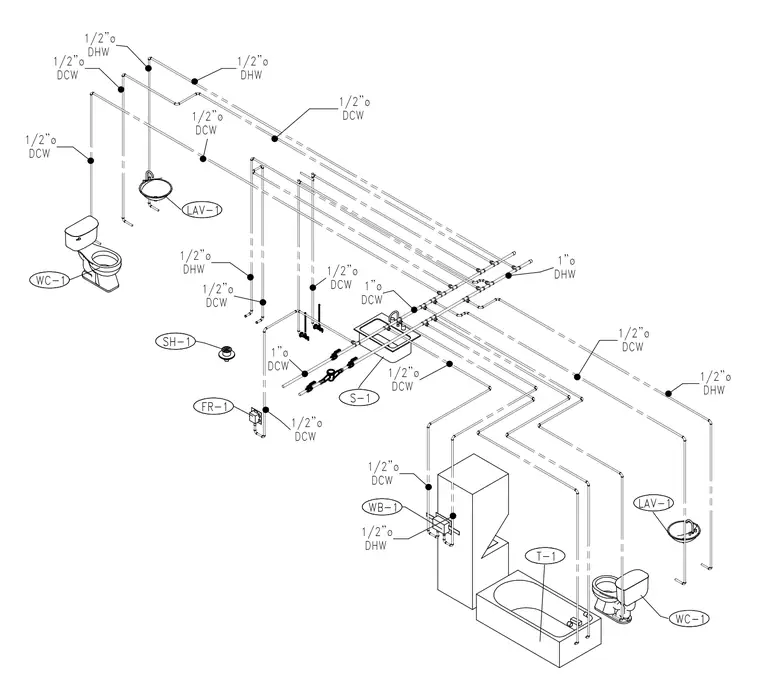

Domestic cold water and domestic hot water piping routes through an isometric schematic to supply multiple plumbing fixtures including water closets, lavatories, sinks, showers, and tubs. One-half inch diameter domestic cold water and domestic hot water lines feed the fixtures, while one-inch diameter lines serve main branches. The layout connects fixtures labeled as WC-1, LAV-1, SH-1, FR-1, S-1, WB-1, and T-1 with clearly defined pipe sizes and routing paths.
