Commercial Kitchen Sink Plumbing and Appliance Connections

Materials

Elements

Walls Floors / Slabs Drainage Connections / Plates

About this detail

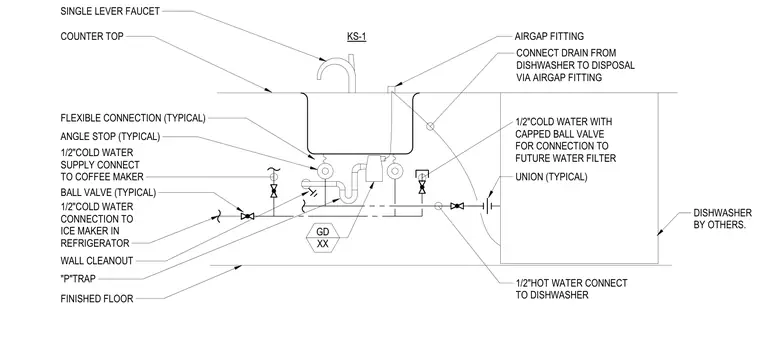

The kitchen sink assembly features a single lever faucet mounted to the countertop above sink KS-1, connected to flexible water supply lines and angle stops. The drainage system incorporates a P-trap, wall cleanout, and a disposal connected via an airgap fitting to the dishwasher drain. Additional supply lines include a one-half inch cold water supply to a coffee maker, a one-half inch cold water connection with a capped ball valve for a future water filter, a one-half inch cold water connection to the refrigerator ice maker, and a one-half inch hot water connection to the dishwasher. Unions and ball valves are provided on supply lines for maintenance isolation.
