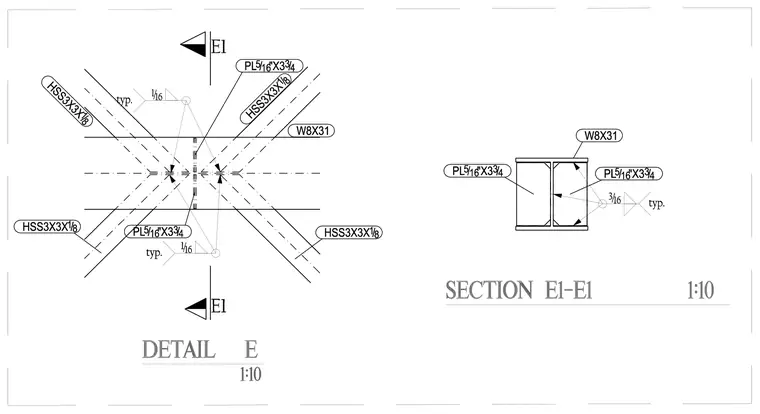

HSS3X3X1/8 diagonal braces frame into a W8X31 steel beam using PL5/16"X33/4 plate connections. The connection details feature one-sixteenth inch and three-sixteenth inch fillet welds typically applied along the member junctions. A section view labeled E1-E1 at a scale of 1:10 shows the plate alignment against the beam web and flanges. All welding and plate dimensions conform to the structural design requirements.
